Standard Configuation
- Optional Finish: Satin/Polishing
- Main Material: Cast Iron
- Cycles Tested: >600,000 Cycles
- Structure: Single cylinder
- Operation temperature: -20-45° C
- Function: 90 and 115 hold-open(8600/8800) 90° and 270° hold-open/free position from 110° -225
- Max opening angle: 120 (8600/8800) / 360° (8600V)
- Application door: Glass door, wooden door, aluminum door all kinds of frame door.
| VERSION | Maximum Door Width(mm) | Maximum Door Weight(kg) |
| HSD 7300 | 1200 | 130 |
| HSD 7300V | 1200 | 130 |
| HSD 7500 | 1200 | 210 |

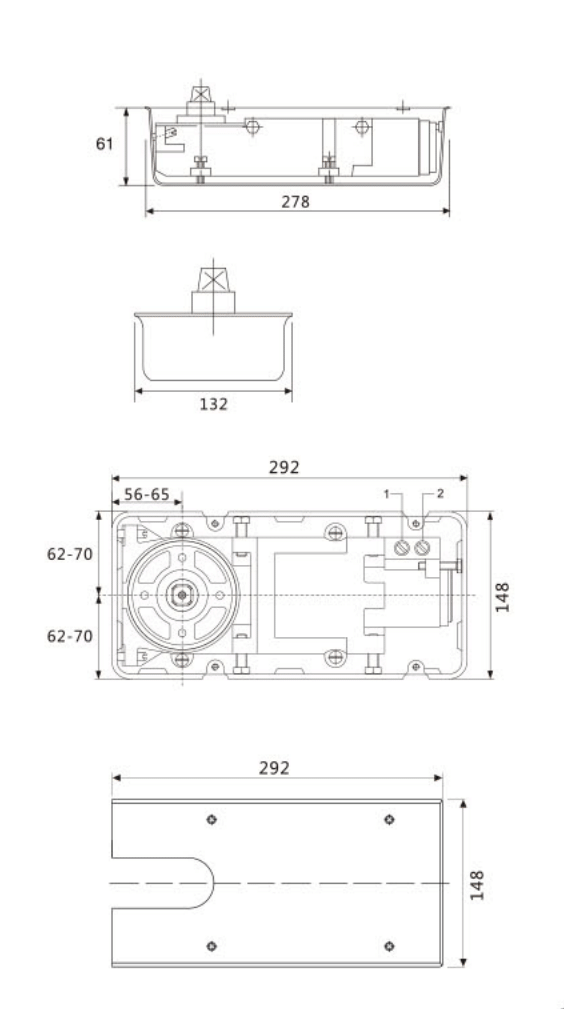

.png)

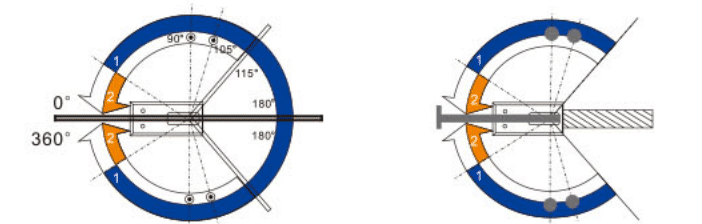

7300V Can Open 0° -360°
It Can Stop At Any Points From 110° To 255°
- Section Adjust 90° -25° Closing Speed
- Section Adjust 25° -0° Closing Speed
.png)
